    Monozone™
Ozone Generator |
 |
|
|
Monozone™
Ozone Generator Principal of
Operation |
 |
|

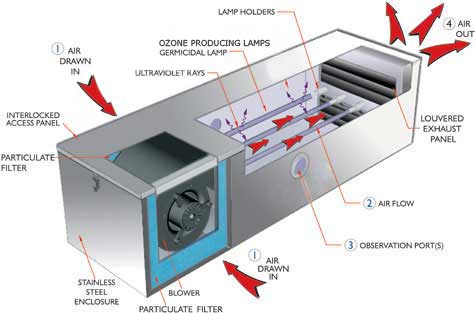

(1) Air is drawn
into unit through
washable electrostatic
particulate filters
(shown above is Model
6-OZ Ozone Generators
40-1503A). |
|
(2) Air is forced
into ultraviolet
exposure chamber where
it is irradiated by
germicidal ultraviolet
light (lamp quantity
varies per model). |
|
(3) Observation
port provides positive
indication of germicidal
lamp operation. |
|
(4) Purified air
and ozone leaves exposure chamber
through the louvered
exhaust panel (which
restricts ultraviolet
radiation from passing
into the room). |
|
|
Monozone™
is a
trademark of the
Atlantic Ultraviolet
Corp. |
|
|
 |
