Model LIND24-EVO -
Wall Mount, Single Lamp
Model LIND24-EVO-2PM -
Pendant Mount, Two Lamp
The principal
application of
Hygeaire™
germicidal ultraviolet
is to purify the upper
room air in occupied
spaces in order to
reduce the risk of cross
infection and exposure
of occupants to
infectious airborne
microbes. These fixtures
are designed to project
the ultraviolet rays
across the upper room
air thereby destroying
bacteria and viruses
that are carried into
the ultraviolet field by
convection currents or
air circulation.

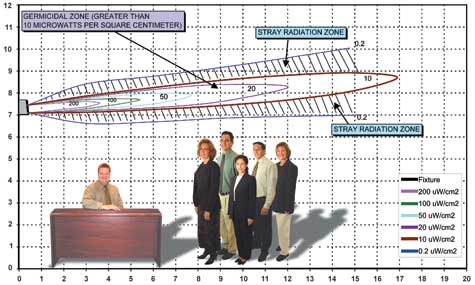

It is an important
requirement when
applying indirect
germicidal ultraviolet
irradiation to upper air
to keep the radiation in
the occupied level
(below 6-1/2 feet)
within acceptable limits
(0.2 microwatts per
square centimeter for an
eight-hour exposure is a
standard set by the
American Conference of
Governmental Industrial
Hygienists). Therefore,
mounting in the
appropriate position is
essential for safe use.
As with all indirect
ultraviolet fixtures,
occasional ultraviolet
measurements
are required to insure
that ultraviolet
intensities within the
treated areas remain
within the allowable
exposure limits and
minimum levels in the
treated field.

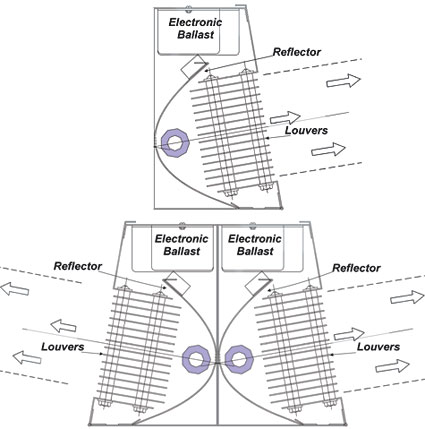

Hygeaire™
fixtures have variable
output ballasts that can
be adjusted so that
installation will comply
with the standard.
Hygeaire™
is a
trademark of the
Atlantic Ultraviolet
Corp.
